Description

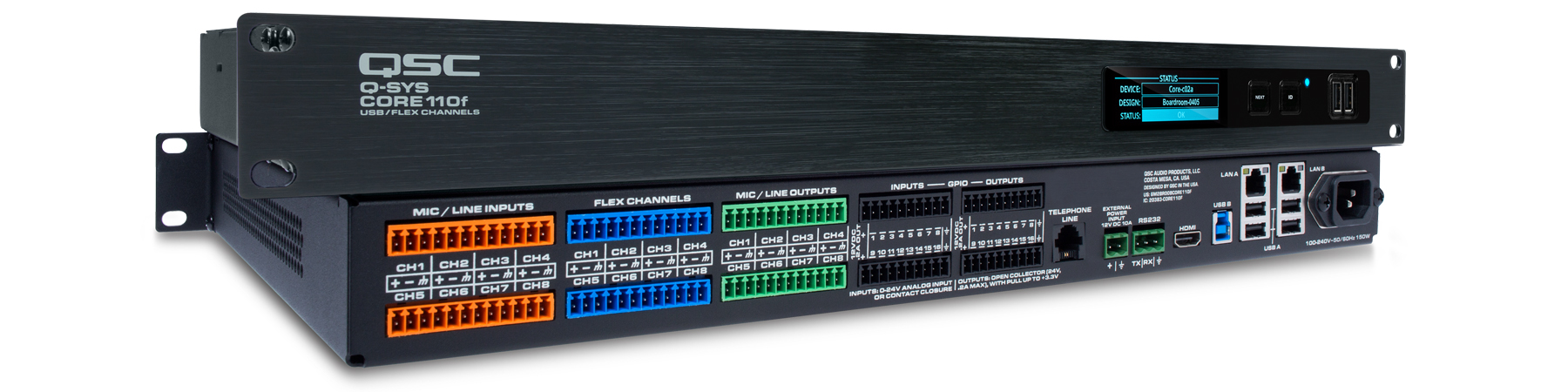

The Q-SYS™ Core 110f processor is the latest addition to the Q-SYS Core family, providing a solution for small, single room projects up to the largest Enterprise scale deployments. The continuity of the Q-SYS software based DSP platform the Q-SYS Core 110f to leverage all the features that are available across the entire Q-SYS™ Platform.
Features
- Class leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.
- 8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.
- True IT Software Integration: The Q-SYS Software platform is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, and more.
- Suite of Software-Based Conferencing Technology applications: Built and owned by QSC from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing and gating automixers.
- Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.
| Model Core 110f | |
| Input Frequency Response | |
| 20Hz to 20kHz @ +21dBu | +0.05dB/-0.5dB |
| Input THD+N @ 1KHz | |
| @ +21 dBu Sensistivity & +21 dBu input | < 0.1% |
| @ +21 dBu Sensistivity & +10 dBu input | < 0.0015% |
| @ +10 dBu Sensistivity & +8 dBu input | < 0.0007% |
| @ -10 dBu Sensistivity & -10.5 dBu input | < 0.0006% |
| @ -39 dBu Sensistivity & -39.5 dBu input | < 0.007% |
| EIN (no weighting, 20Hz to 20kHz) | < -121dB |
| Input to Input Crosstalk @1kHz | >110dB Typical, 90dB Max |
| Input Dynamic Range | |
| @ +21 dBu Sensitivity | > 109.5dB |
| @ +10 dBu Sensitivity | > 106.4dB |
| @ -10 dBu Sensitivity | > 104.6dB |
| @ -39 dBu Sensitivity | > 104.6dB |
| Input Common Mode Noise Rejection | |
| @ +21 dBu Sensitivity | |
| @ +10 dBu Sensitivity | 56.5 |
| @ -10 dBu Sensitivity | 73.2 |
| @ -39 dBu Sensitivity | 63.2 |
| Input Impedance (balanced) | 5K Ohms Nominal |
| Input Sensitivity Range (1dB Steps) | -39 dBu min to +21 dBu max |
| Phantom Power | +48v DC, 10mA per input max |
| Sampling Rate | 48kHz |
| A/D – D/A Converters | 24-bit |
| Overall Dimensions/Weight | Device Height: 1.75 inches (44 mm) Device Width: 19.0 inches (483 mm) Device Depth: 11.12 inches (282.5 mm) Device Weight: 11 lbs. (5.0 kg) Shipping Height: 6.0 inches (152 mm) Shipping Width: 23 inches (584 mm) Shipping Depth: 14 inches (356 mm) Shipping Weight: 12.4 lbs. (5.6 kg) |
| Output Frequency Response | |
| 20Hz to 20kHz @ all settings | +0.2/-0.5 dB |
| Output THD | 0.003%, +10 dBu Max output level |
| Output Crosstalk @1khZ | >100dB Typical, 90dB max |
| Output Dynamic Range | >108dB |
| USB B | |
| Bit Depth | Selectable 16-bit, 24-bit |
| Number of Channels | up to 16×16 |
| Sample Rate | 48kHz |
| Output Impedance (balanced) | 220 0hms |
| Output Level Range : (1dB Steps) | -39 dBu min to +21 dBu max |
| Power Consumption | 60 watts, typical. 120 watts max |
| BTU/Heat load: | 205 BTU/Hour |
| Compliance | FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada), CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union) & RoHS Directive (Europe) |
