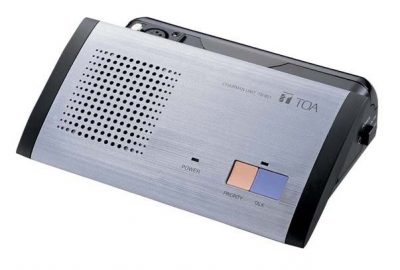

TS-801 Chairman Unit

Description

The TS-801 is a Chairman unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. The Chairman unit features a priority speech key which allows it to take precedence over the TS-802 Delegate units (optional) when speaking. It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional). It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-801 as optional products: the TS-903 standard type and the TS-904 long type.

Power Source 7.4 V DC (battery), 9 V DC (AC adapter)
(supplied from BP-900 battery (option) or AD-0910 AC adapter (option))
Current Consumption Max. 270 mA
Input Microphone terminal: Combined type of XLR-4-31
(dedicated for connecting the optional TS-903 or TS-904)
Output Monitor speaker: 8 Ω, 0.2 W
Headphone: Mini jack × 2
LED Indicator Speech indicator (flashes when the unit is out of communications range),
Power indicator (flashes when the unit is out of communications range or when the battery level is low)
Battery Life Approx. 10 hours (when the fully-charged BP-900 battery is used with During speech to Standby ratio of 1:2)
Operating Temperature 0℃ to +40℃
 Finish Top panel: ABS resin, gray metallic, paint, semi-matte
Dimensions 210 (W) × 65.9 (H) × 152 (D) mm
Weight 630 g
Option Microphone: TS-903, TS-904 (Select either one.)
Lithium-ion battery: BP-900
AC adapter: AD-0910
 Infrared Emitter/Detector
Wavelength 870 nm (AM: Brightness modulation)
Modulation Method Frequency modulation
Carrier Frequency Transmission: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Audio channel: 1.95 MHz
Acceptance Angle Vertical: 90゜, Horizontal: 120゜
Emission Angle Vertical: 90゜, Horizontal: 120゜
Covering Range 7 m (radius)
